Prism systems for track surveying

Professional Accessories for Track and Crane Rail Surveying

Railway geodetic surveying and measurements in production facilities equipped with overhead cranes are among the most critical engineering tasks. Even the slightest deviation in track gauge or rail height can impact operational safety. This is why a stable prism mounting system is a key component of every railway surveyor's equipment.

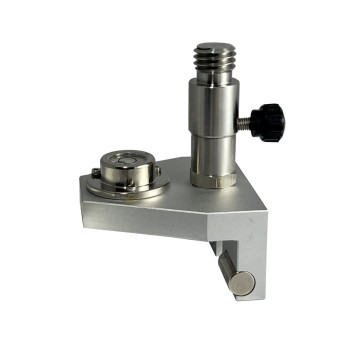

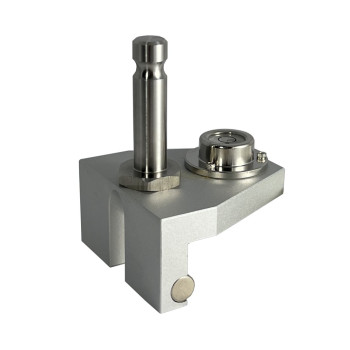

Why choose a magnetic rail prism mount? Traditional methods of positioning a prism on a rail can be time-consuming and prone to errors caused by surface instability. Our magnetic prism mount solves these issues through:

• Lightning-fast installation: Strong neodymium magnets ensure firm adhesion to the rail head in seconds.

• Consistent prism constant: The mount's design allows for reproducible measurement geometry, which is essential for precise track axis determination.

• Versatility: Ideal for both traditional total station surveys and Automated Monitoring Total Station (AMTS) systems.

Applications in Industry and Infrastructure Our accessories are indispensable during:

• Periodic inspections of crane rails: Allowing for quick checks of parallelism and rail leveling.

• Construction and modernization of railway lines: Facilitating the precise alignment of turnouts and curves.

• Structural monitoring: Stable prism mounting allows for long-term observation of rail geometry changes under load.

By choosing equipment from our store, you are opting for proven solutions that significantly reduce time spent in the field, while ensuring the highest standard of geodetic documentation.
